3 Minute Video

Model Images

Fusion 360 - Initials

INITIALS

 A, D, O

Fusion 360 would not process Q, H and C

Rendered Materials:

Blue Glass, Mirror, Gold (yellow and blue)

This was another activity that I did not enjoy as once again, Fusion 360 would not load without crashing and also would not accept my initials. Instead, I used the initials of one of my friends ADO as a substitute. However, despite everything, I enjoyed rendering the model.

Fusion 360 - 3 rectangle Room Model [aka Frustration 360]

The program crashed a few times when opening, hence it took a while to procure. I believe that this may be my weakest area of expertise as I went into the modelling process with a negative attitude due to the programs previous crashes. This may be why my model does not look professional. However, this was my best attempt and I believe that I can improve going forward.

1:20 Room models [warm and cool]

Night time (cool blue light)

current

-low level of light

- white walls may be too bright for sleep

Day time (warm yellow light)

current

- white walls help make room bigger

- low level of light

Night time (cool blue light)

intended

- larger window introduces more light

- black wall facing the inhabitant makes room feel more secure (smaller)

- should consider inserting a divider to stop mirror from reflecting light and seperate workspaces

Day time (warm yellow light)

intended

- larger window introduces more light

- white wall towards study desk makes room feel bigger

-mirror reflects light, making room feel brighter

Written Statement - 100 words

In my model ‘Afternoon’, I have introduced a large bayside window, wall-to-wall mirror and curated selection of wall paint in order to create two contrasting moods in the same space. In photos included, the model was photographed in two different light settings in order to emphasise the ideas - for example, yellow light symbolising the sun casts a warm haze on the room, reflected by a large mirror will make the room feel larger. Additionally, blue light symbolising night time will introduce a cooling effect, reinforced by white and black walls to make the space feel more secure.

1:20 Rooms & Shadows

Room Floorplan

(current - left, intended - right)

using realistic parameters, you are limited in the changes you can make towards storage areas. extruding window and adding build in wardrobe provides more space. More light can come in from expanded window and reflect off smooth wall mirror

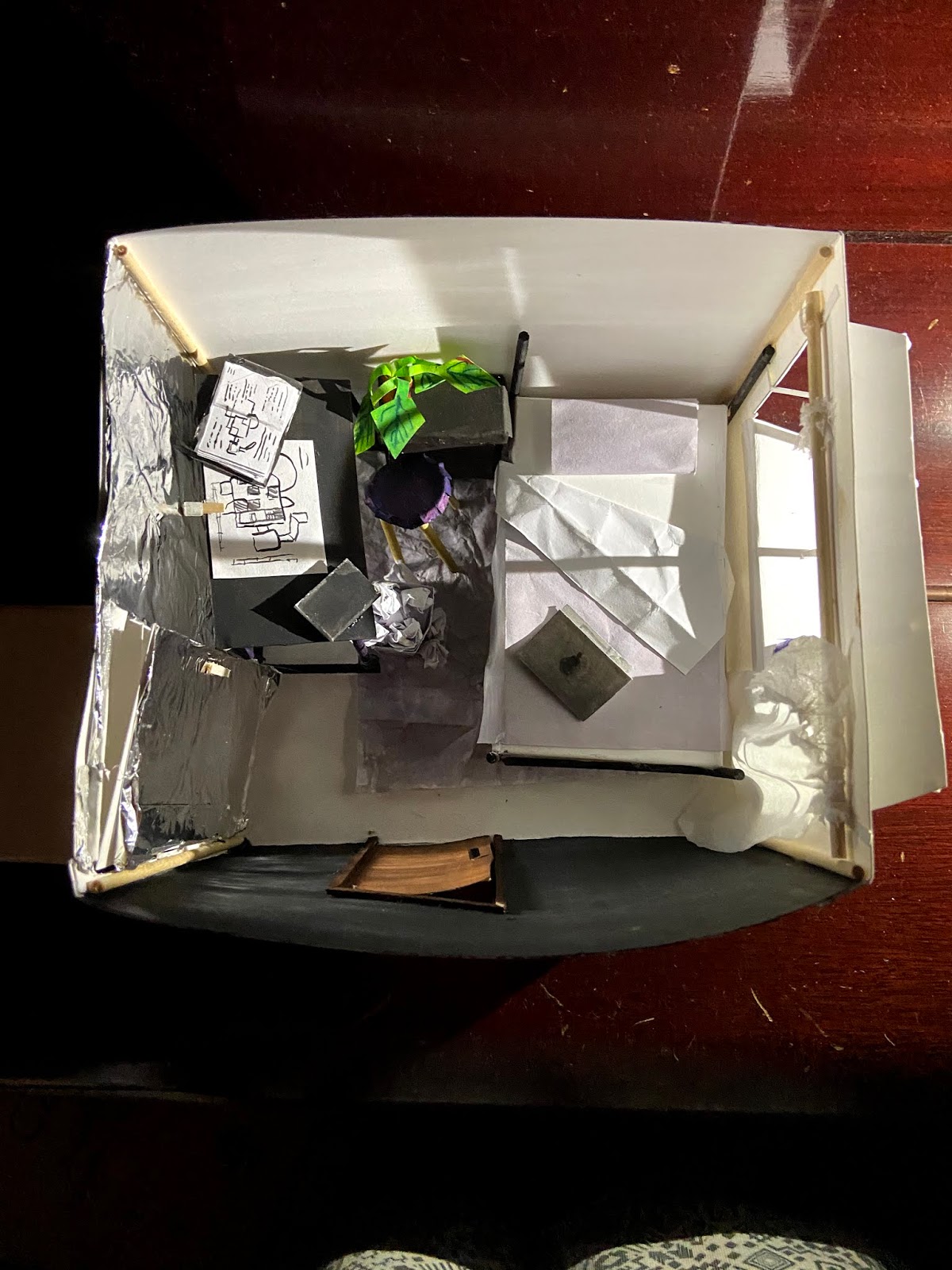

 'Natural' Light and Shadows (Current)

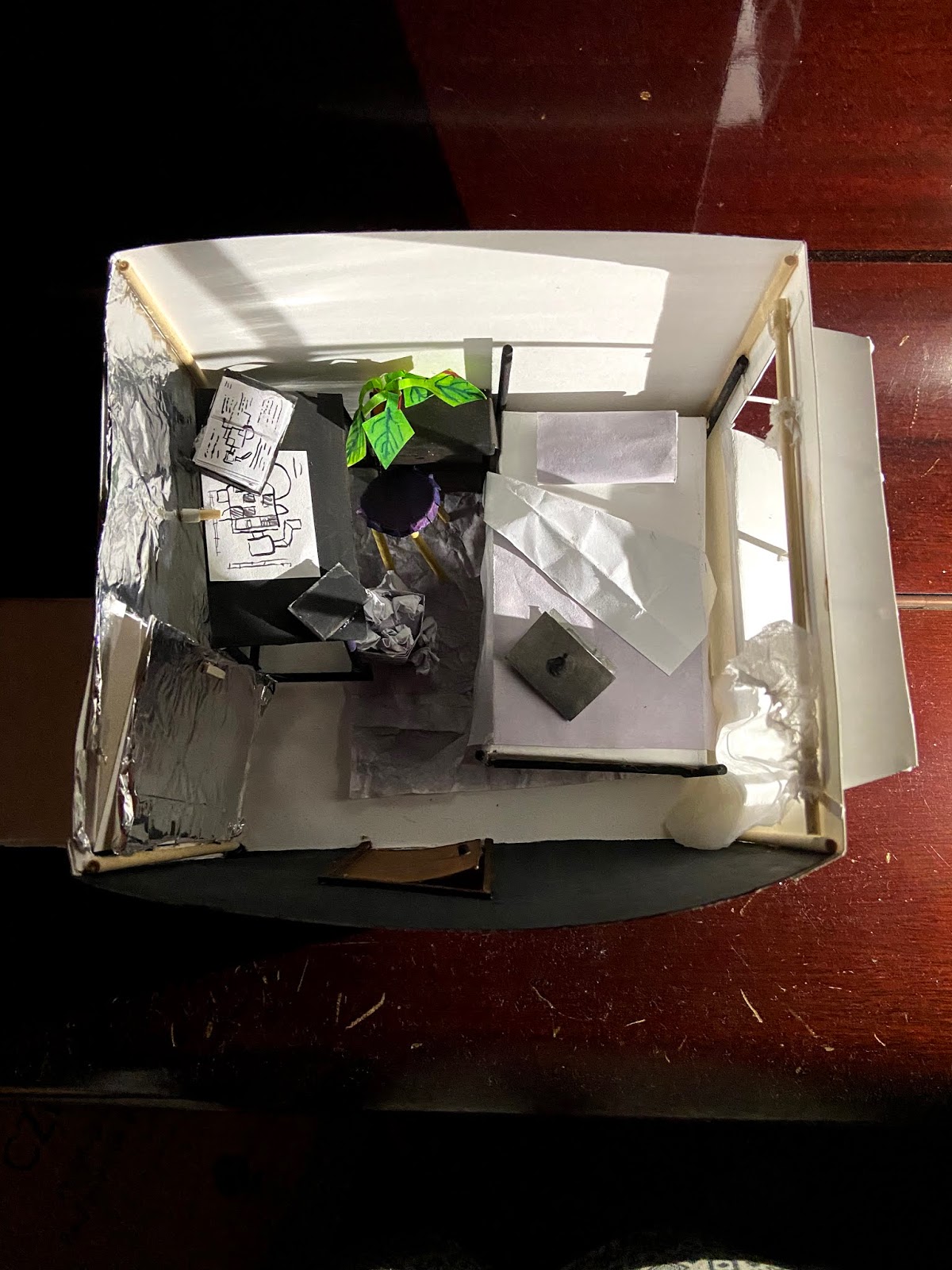

'Natural' Light and Shadows (Intended)

1:20 Room Additions [with model]

Side Note: Its a 1:20 figurine.

Considerations:

Adding a screen between the bed and work area?

1:20 Room model [with additions]

Note: could not add secondary window due to that wall being someone else's room

Mirror in this model was substituted for aluminium foil because parents would not let me break a mirror.

Confirmed:

- bayside window

-mirrors on other side of bayside window

- kept artificial light from roof (night time light)

- floor-length curtain theoretically will be nice to add

- integrated wardrobe allowed more space

Note:

Realistic parameters are implemented despite notes that say room does not have to be accurate. Therefore, keep in mind that:

3.5m x 3 m room

Left wall = hallway, top wall = living room, right wall = someone else's room, bottom wall = road.

Therefore, only two spaces are viable for expansion.

1:20 Room Object Models

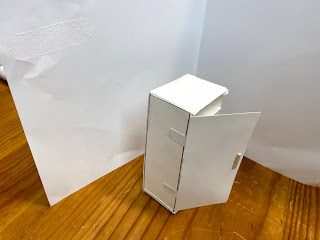

Wardrobe Model

Drawer Model ( and Plant)

Table Model (and Papers)

Chair/Stool Model

Curtain Model

Bin Model

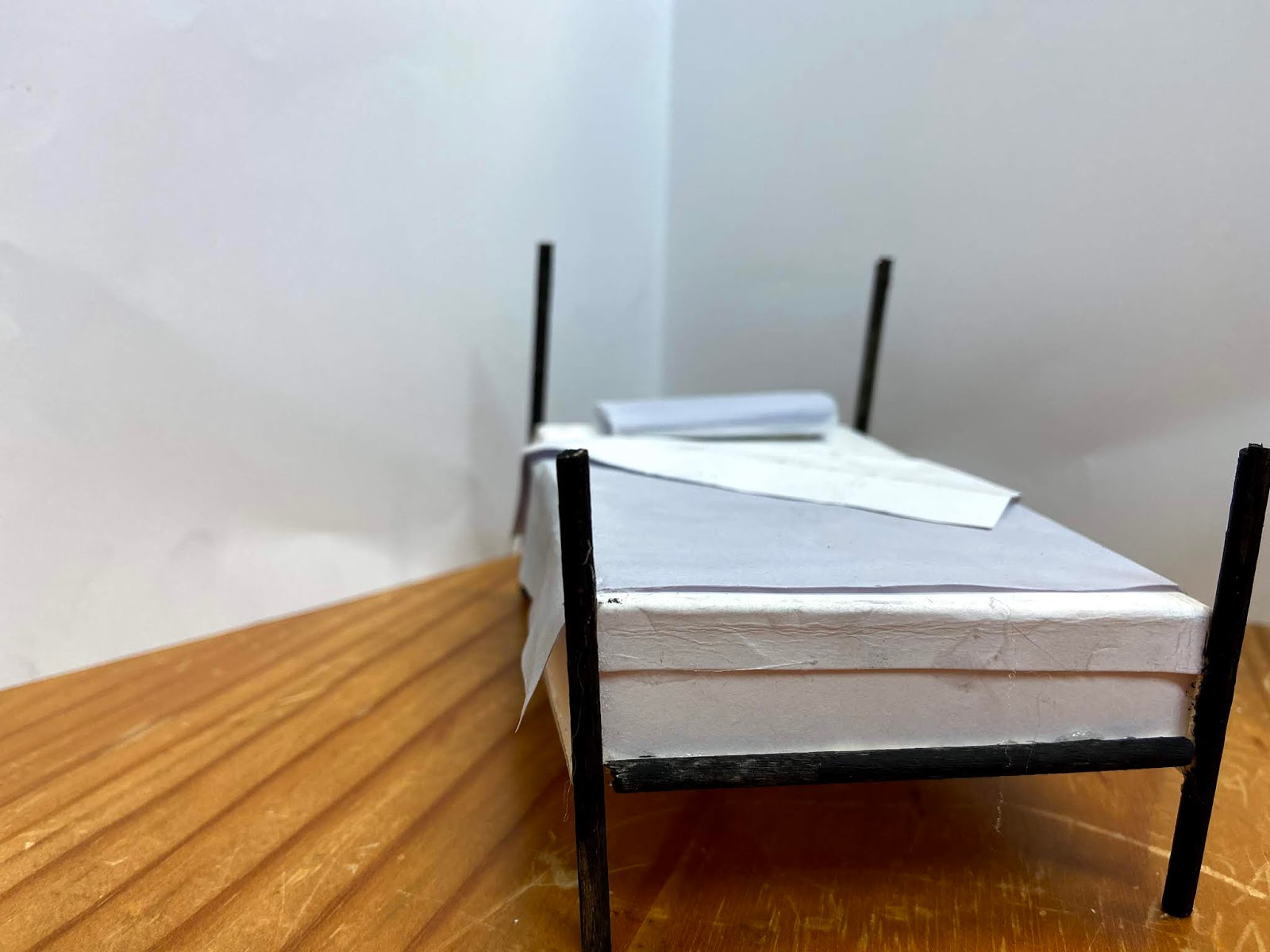

Bed Model

Carpet Model

Door Model

Room Model

Window Model (plus Curtain Hooks)

Please ignore the smudge at the top of this picture. It was unintentional. This does not indicate the room itself. This wall is white, I assure you.
